MB-360 Towable Backhoe

Description

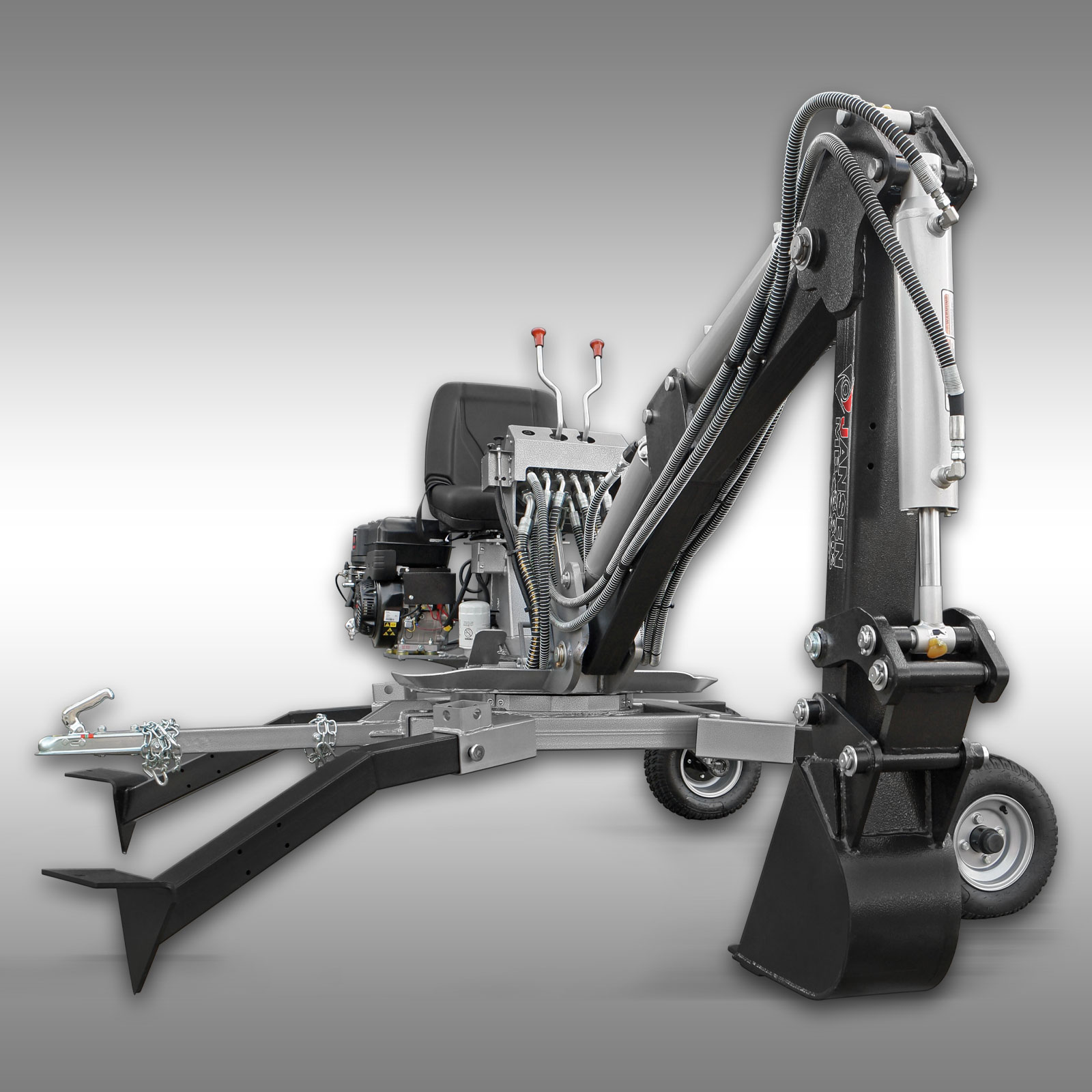

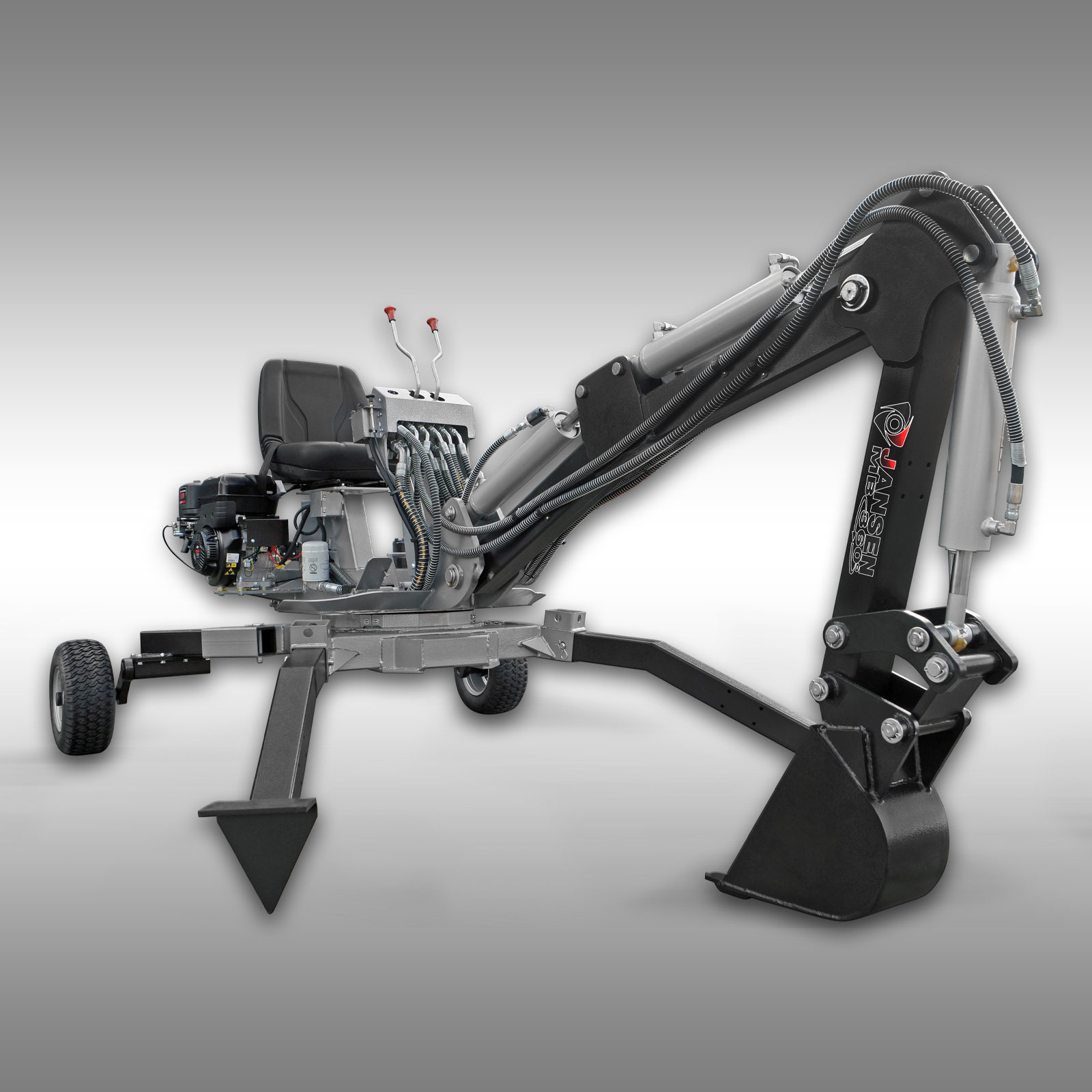

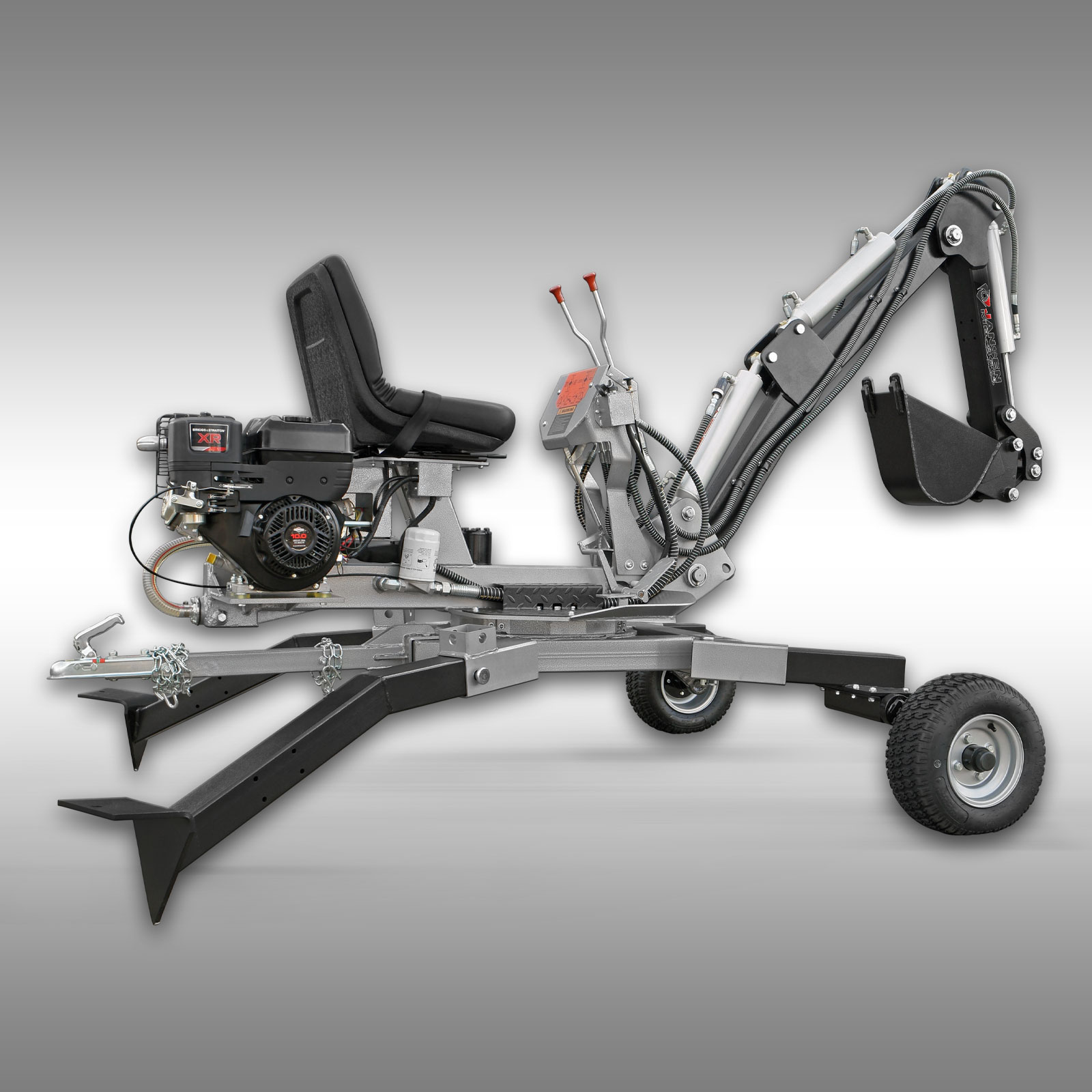

THE NEW JANSEN USA MB-360° TOWABLE BACKHOE WITH A 360-DEGREE SWIVEL

The Jansen USA MB-360° walking excavator with a 360-degree swivel is the ideal solution for challenging construction projects in remote and hard-to-reach areas. With a 10 HP gas engine and impressive technical capabilities, this towable backhoe is essential for both DIY and professional use.

360° ROTATING ASSEMBLY / BOOM SWING

The unique feature of the Jansen USA MB-360° is its 360-degree rotating assembly, which allows virtually unlimited swivel. This makes the excavator extremely versatile and flexible, even in the most demanding terrain.

TECHNICAL DATA:

• 4-stroke engine, Briggs & Stratton, 10 HP, 306cc
• Fuel: regular gasoline
• Starter: Electric and recoil starter
• Weight: approx. 1,257 lbs
• Boom swing angle range: 360 degrees
• Digging depth: approx. 6.9 ft
• Reach: approx. 8.9 ft
• Dumping clearance: approx. 5.2 ft
• Ripping force: approx. 1,213 lbs
• Load capacity: approx. 551 lbs
• Hydraulic oil amount: approx. 4.8 gal (HLP46)
• Total length: 13.8 ft
• Width of supports: 6.6 ft
• Width of gray main frame: 3.3 ft

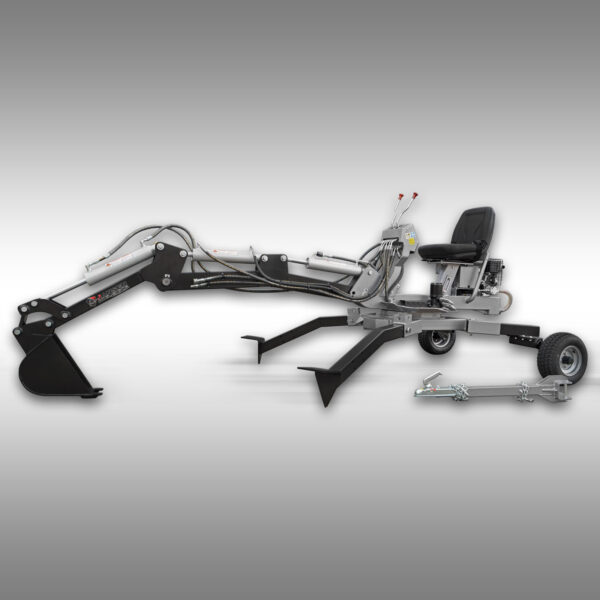

• Minimum width in transport position: 6.2 ft
• Maximum height: 8.5 ft
• 8-inch bucket included
• AHK tow bar assembly removable
• Supports can be raised for transport

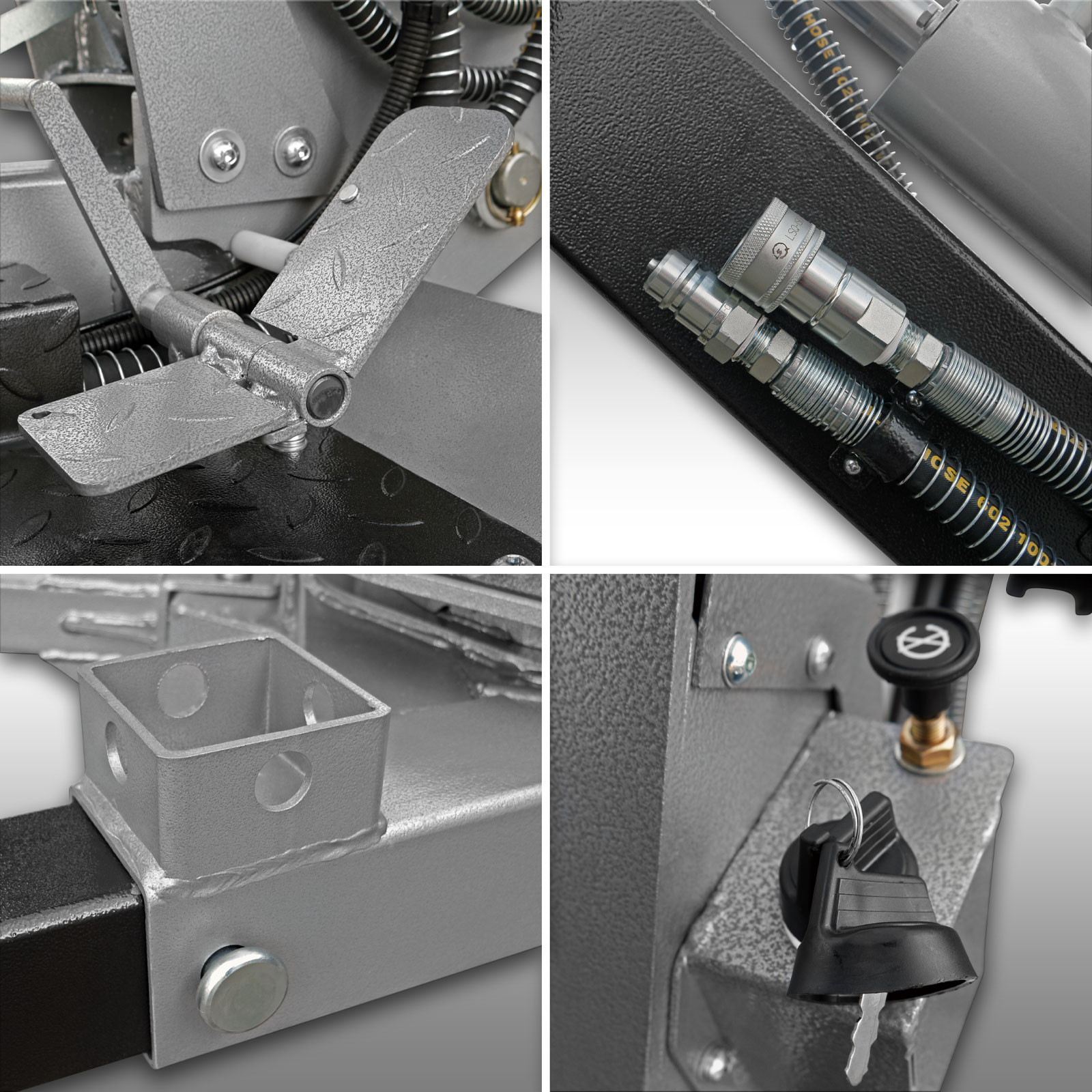

• Additional hydraulic circuit on excavator arm
• 4 double-acting hydraulic cylinders

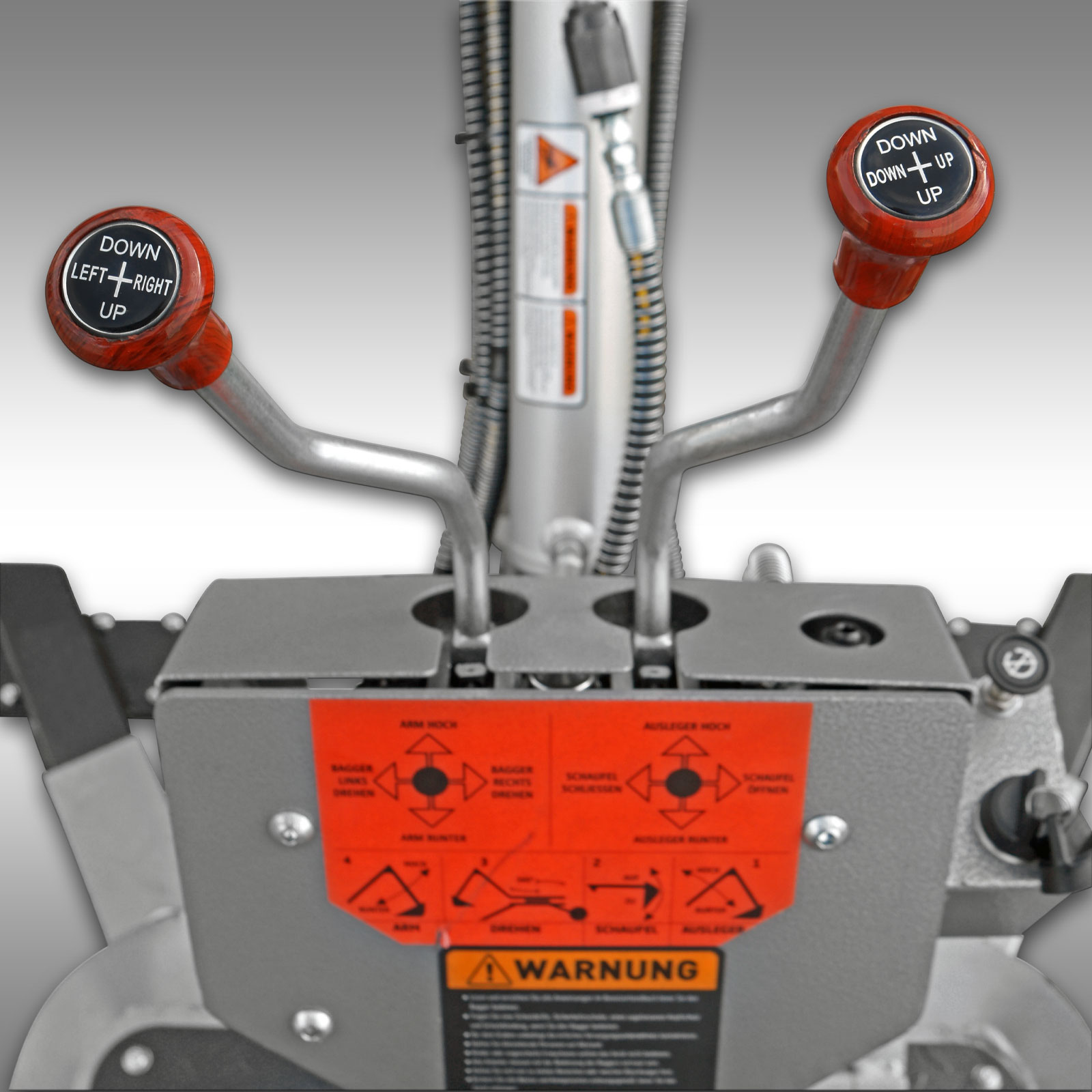

• Four-way control lever steering (2 control levers)
• Package dimensions: 7.4 x 3.3 x 2.8 ft (LxWxH)
• Shipping weight: approx. 1,479 lbs

IDEAL FOR REMOTE LOCATIONS

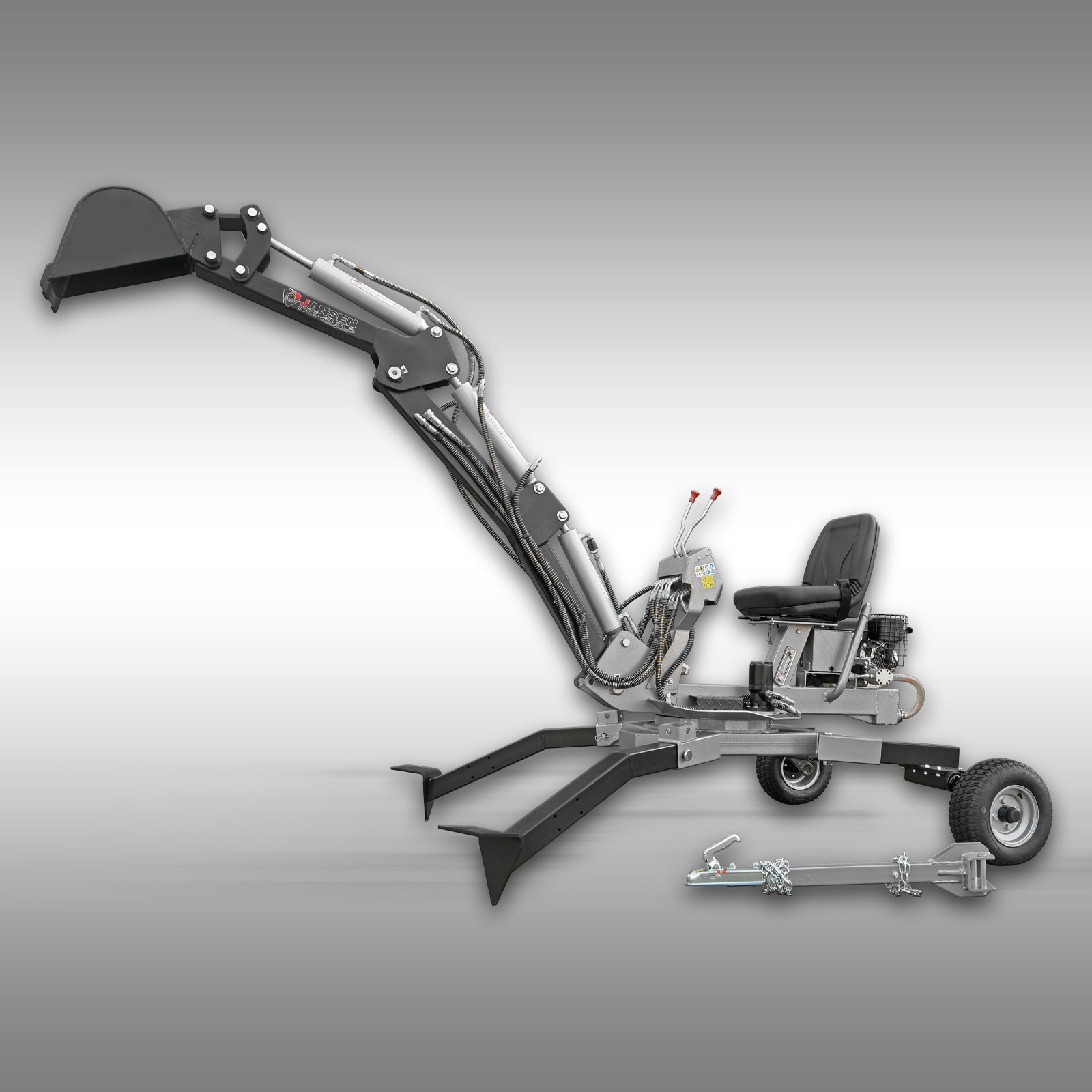

This walking excavator was developed specifically for areas where traditional construction equipment can’t reach. The marshy or mountainous terrain is no longer a challenge with the Jansen MB-360°. The strength and ruggedness will impress you. The Jansen USA MB-360° includes a removable towing bar for ball hitches, allowing safe and easy transport from point A to point B. While this unit lacks a self-drive system, it can be moved by pulling or pushing with the bucket.

RUGGED DESIGN AND TOUGH SUPPORTS

The robust design of the Jansen MB-360° ensures high durability and stability during operation. The sturdy supports ensure it remains secure even on uneven terrain. For transport, the wheels and supports can be repositioned from the front to the back.

POWERFUL 10 HP ENGINE WITH ELECTRIC START

The 10hp gas engine with an electric starter and powerful hydraulic system provides the power necessary for demanding tasks. With the Jansen MB-360°, you’ll have the power needed for tough jobs. It features a hydraulic control unit for precise operation, and the four-way control lever steering improves ease of use and efficiency on the job site.

OPTIONAL ACCESSORIES

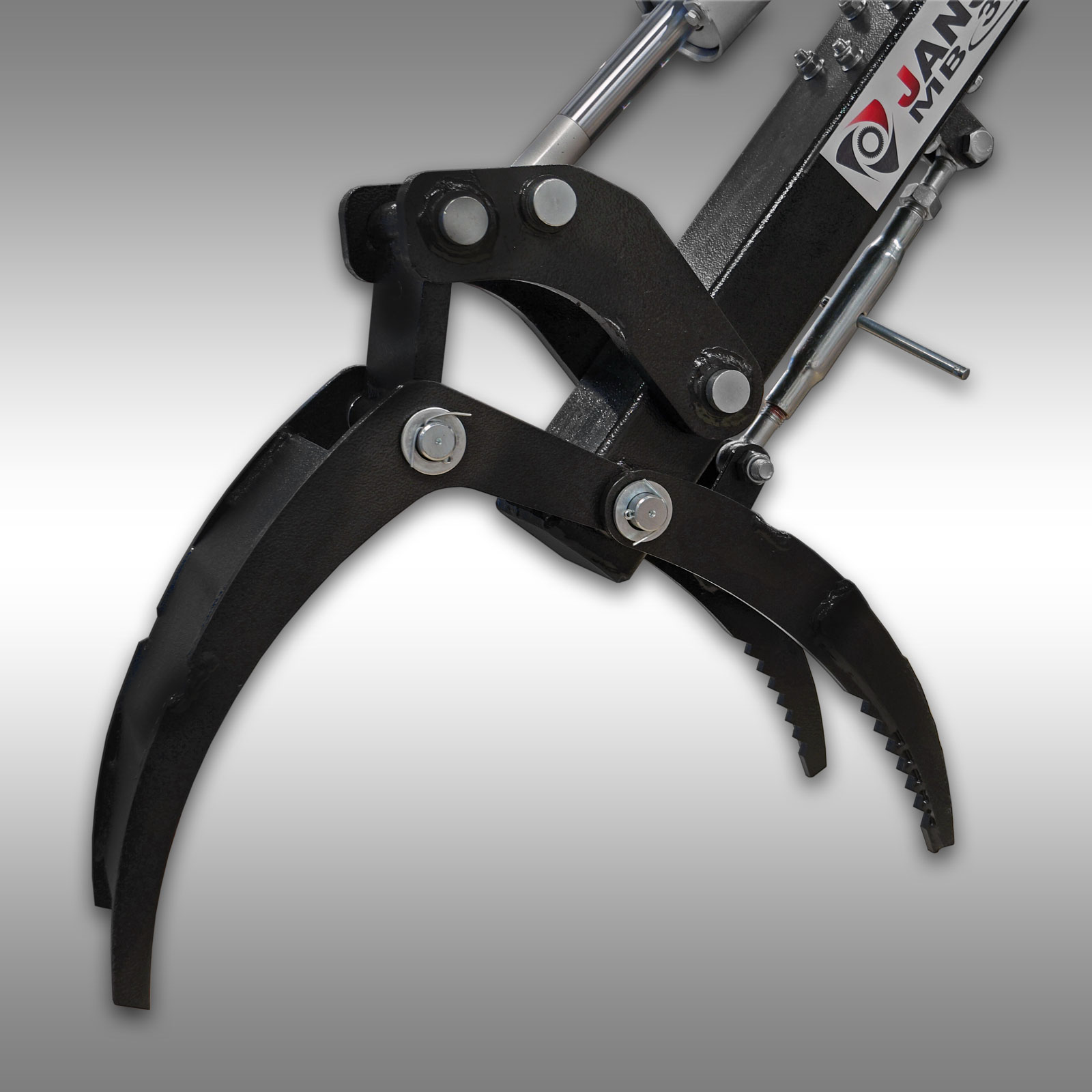

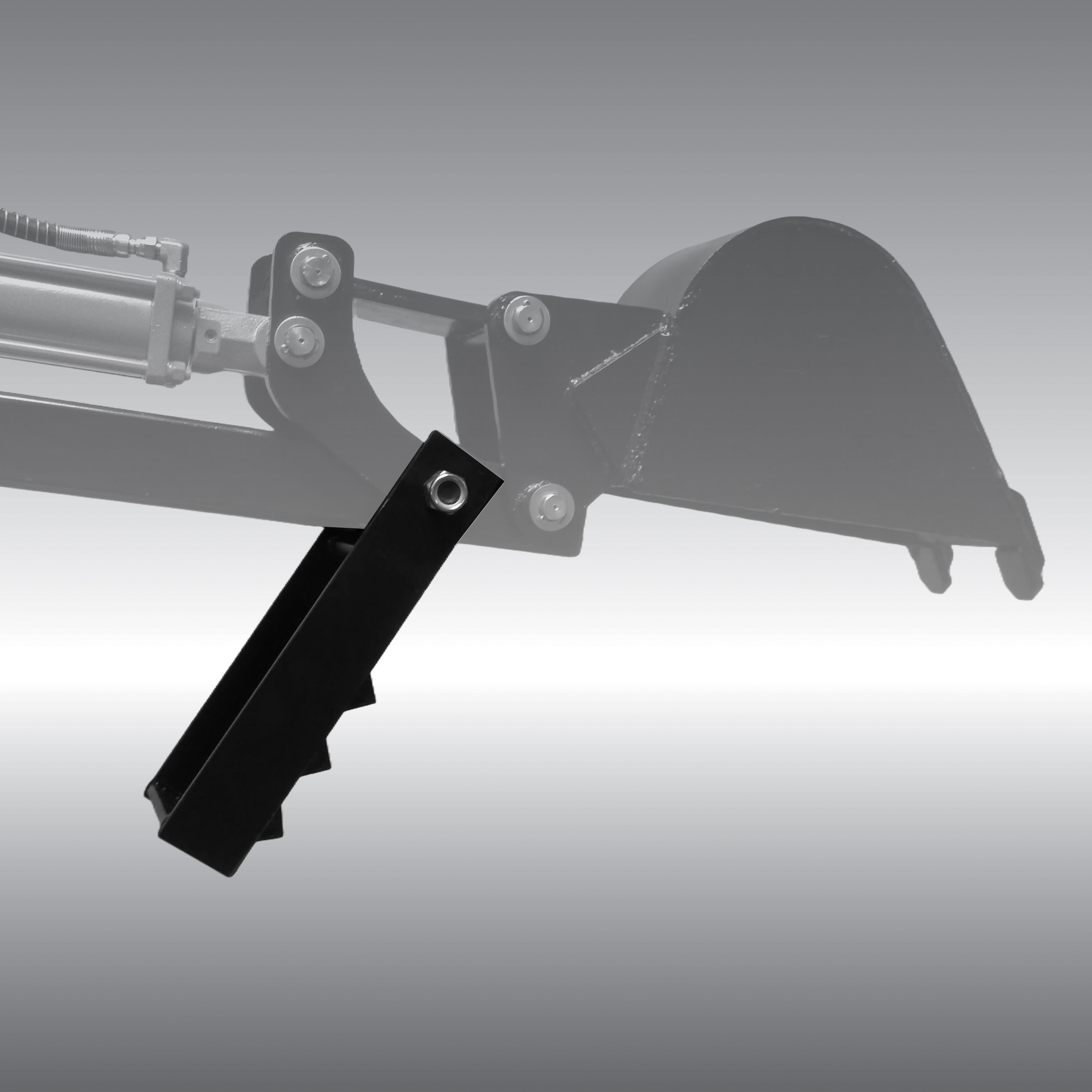

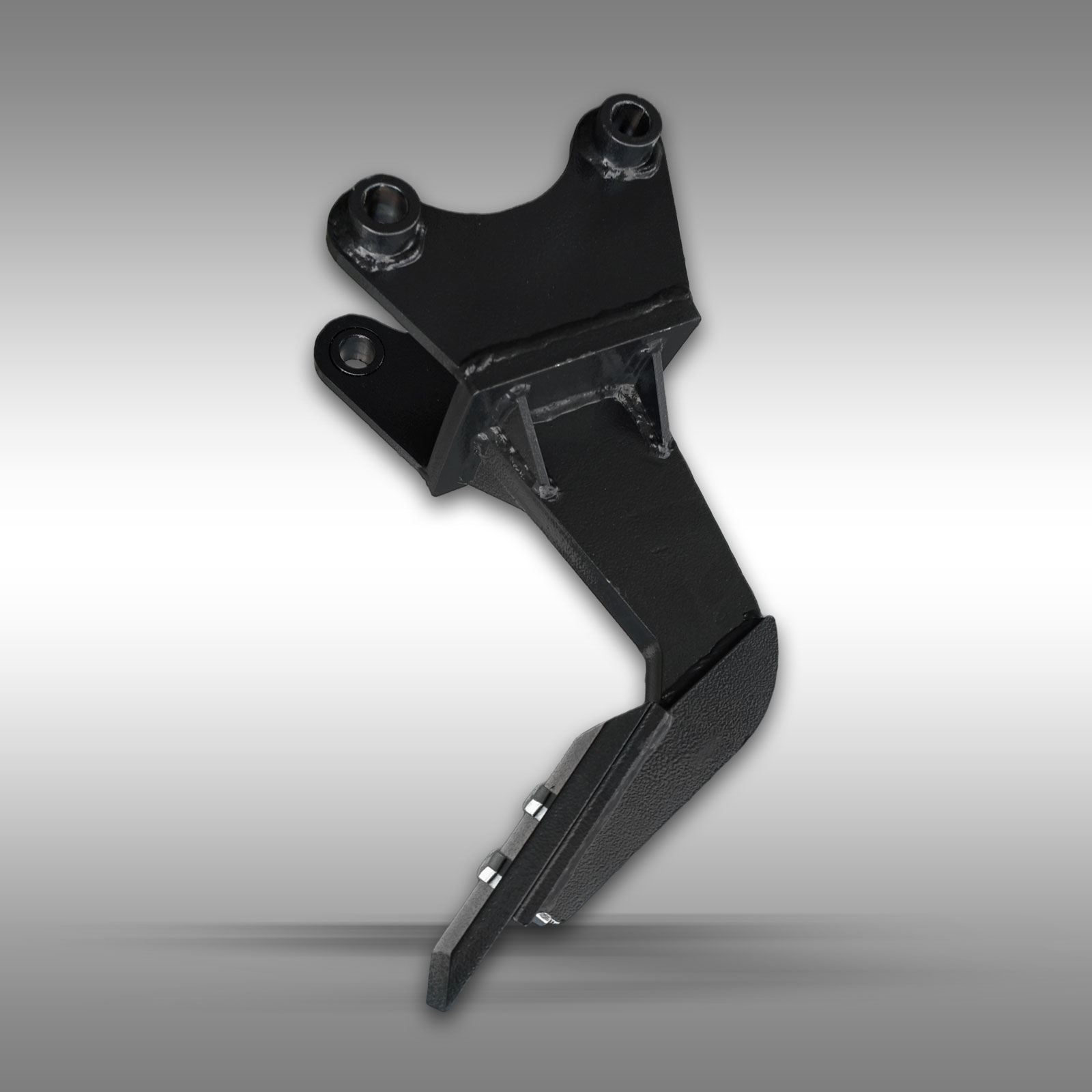

An 8-inch bucket is included. As optional extras, we offer 14- and 24-inch wide buckets, a trench bucket, a grapple, and a ripper. Please feel free to contact us.

CONCLUSION

If you need a reliable and powerful walking excavator that performs in challenging terrain, the Jansen USA MB-360° with gas engine is an excellent choice. Depend on this impressive unit to complete your construction and landscaping projects successfully.

NOTE

The unit is shipped well-packed and partially assembled in a wooden crate. Allow about 5-6 hours for final assembly. For further information, please feel free to reach out. You’ll need approximately 4.8 gallons of hydraulic oil to prepare the unit for use. HLP46 hydraulic oil is ideal and widely available. You’ll also need approximately 1 quart of motor oil for the engine. We recommend multi-purpose oil, either 10W40 or 15W40.
